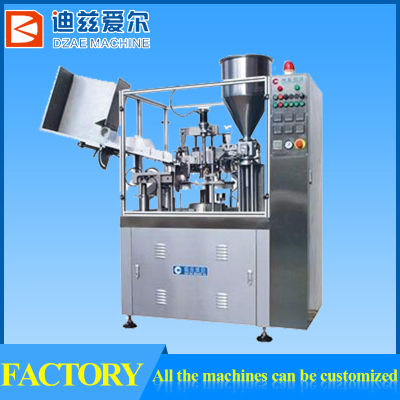

Toothpaste Tube Filling and Sealing Machine
Product Description
Specification
Toothpaste tube filling and sealing machine
This machine is suitable for plastic tube, aluminum-plastic composite tube ,
Automatically loading the tubes,beach color marking, filling, sealing, printing batch number ( date ) , cut the tail , out tubes , counting.
The computer program operated by the switch button (or touch screen), PLC control. Sealing Swiss imported hot air and hot air heating system meter high stable form, blowing hot air from the hose wall, thereby melting plastic hose from the outside with a loop water cooling (optional chiller or water cycle), to ensure a beautiful appearance without distortion, beating tooth pattern (stripes, twill) and batch (1-4 group). has sealed a solid, fast, does not damage the sealing portion of the appearance, sealing appearance, neat. filling material contact parts made of all stainless steel processing, can be widely used in cosmetics, medicine, toothpaste, food, oil, chemical and other industries.
Main technical parameters:
Filling volume : 5-60ml ,30-120ml ,40-300ml ,60-250ml ( optionally )
Filling accuracy : ± 1.5%
Production capacity : 45 pcs/min ( according to the material )
Gas source > 0.5Mpa> 0. 14M ³/min
Voltage : 220V 50HZ
Power : 3.5KW
Counter : 0-999999PCS
Dimension : 1200 × 930 × 1600mm
Weight : 450KG
