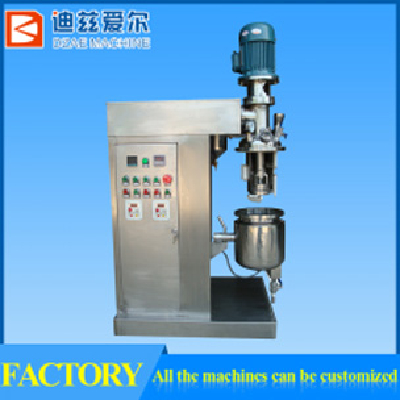

DZAR-5L Vacuum Emulsifying Mixer, lab use homogenizer, emulsifier for lab use
5L vacuum emulsifying mixer
Working process
The materials are heated and mixed in water pot and oil pot to be fully reacted.
Sucked into emulsifying pot by vacuum pump, the materials are stirred by both the center blade and side
scraper, which works on the wall.
In the process of bladestirring, the materials are continuously crushed, pressed, folded. Then,the materials
are sent to the cut-off mixing until where they are finally crushed into small pellets of 200μm~2μm.
Because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are
sucked out from materiallotion making machine.
Technical parameters:
Item | 350L vacuum emulsifying mixer | |
Emulsifying pot | Design Volume(L) | 6 |
Capacity(L) | 5 | |
Scraper Stirring Power(kw) | 0.18 | |
Scraper Stirring Speed(rpm) | 0-100 | |
Homogenize power(kw) | 0.37 | |
Electrical heating power(kw) | 1 | |
Homogenize speed (rpm) | 0-3500 | |
Water pot
| Design Volume(L) | 3.2 |
Capacity(L) | 2.5 | |
Stirring power(kw) | 0.025 | |
Stirring speed(rpm) | 1250 | |
Electrical heating power(kw) | 0.5 | |
Oil pot | Design Volume (L) | 3 |
Capacity (L) | 2.5 | |
Scraper mixer power (kw) | 0.025 | |
Scraper mixer speed (rpm) | 1250 | |
Electrical heating power (kw) | 0.5 |
